    UFO High Bay LED Lights Die Casting Pure Aluminum Shell Type With Safety Rope Component

    Ask Lasest Price
    Brand Name : SUNLUXX
    Model Number : HBL-150Watt
    Certification : CE RoHs
    Price : US$118.76/PCS unit EXW prices
    Payment Terms : T/T, Western Union
    Supply Ability : 5000 Pieces per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    UFO High Bay LED Lights Die Casting Pure Aluminum Shell Type With Safety Rope Component

    Diamond Quality Die Casting Pure Aluminum UFO High Bay LED Lights , Safety Rope Component


    150Watt UFO High Bay LED Lights total 21750 lumens, up to 145 lumens to watt, 5700K,6000 watt HID/HPS Equivalent.


    Features


    1. Luminous efficacy up to 145 lm/W

    2. Perfect for warehouse lighting, garage lighting, supermarket lighting, factory lighting and shop lighting

    3. Meanwell HBG series driver and Lumileds 3030 LED make the LED high bay light fixtures durable without quality headache.

    4. Up to 33’(10m) mounting height


    Produce Code

    HBL-60Watt HBL-80W 100W HBL-120W150W HBL-200W240W

    Power60Watt80W 100W120W 150W200W 240W
    Input Voltage90-305VAC
    Input Current

    60W:0.27A@220VAC 80W: 0.36A@220VAC 100W:0.45A@220VAC

    120W:0.55A@220VAC 150W:0.68A@220VAC 200W:0.91A@220VAC

    240W:1.10A@220VAC

    PF>0.90@220VAC
    DC output voltage60W:54V 80W100W120W150W: 48V
    DC output current60W:1.05A 80W: 1.5A 100W: 1.9A 120W: 2.3A 150W:2.9A 200W:3.9A 240W:4.65A
    Dimming (Optinal)3 in 1 dimming (PWM, 0-10V, Resistor),Dali
    CCT4000K,5000K,5700K,3000K

    Ra >70

    5000K

    Typical Flux

    60W:9000Lm±5%,80W:12000Lm±5%,100W:15000Lm±5%,

    120W:18000Lm±5%,150W:22500Lm±5%,200W:30000Lm±5%

    240W:36000Lm±5%

    LED BrandNichia 3030 and Lumileds 3030
    Beam Angle60°,90°,120°
    Operation Temp-40℃ ~ +45℃
    Storage Temp-40℃ ~ +85℃
    Life Circle45℃ 50000Hours
    IP ClassIP66
    IK ClassIK08
    CertificateCE,ROHS
    Body ColorBlack (default with RAL9005),Gray ( optional for RAL9007)

    150Watt LED UFO High Bay Lights Light Distribution



    Safety Rope Component options

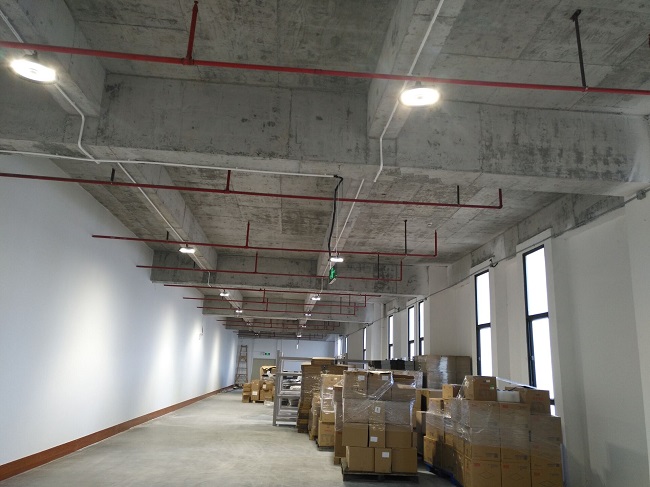

    Applications
