    80 Watt IK10 High Bay LED Lights , Nichia 3030 UFO LED High Bay Fitting

    Ask Lasest Price
    Brand Name : SUNLUXX
    Model Number : HBL-80Watt
    Certification : CE RoHs
    Price : US$97.55/PCS unit EXW prices
    Payment Terms : T/T, Western Union
    Supply Ability : 5000 Pieces per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    80 Watt IK10 High Bay LED Lights , Nichia 3030 UFO LED High Bay Fitting

    80Watt IK10 Nichia 3030 LED chip LED UFO Fitting 160LM/W Luminous Efficiency High Bay


    LED UFO Fitting 80watt=12,000 lumens, up to 150 lumens to watt, 300 watt HID/HPS Equivalent. 80Watt LED UFO high bay light with LED driver-Meanwell Brand Driver also has 1-10V dimmable function, the beam angle is 60 degree,90 degree,and 120 degree.


    Features


    1. Luminous efficacy up to 150 lm/W

    2. Fast Installation,The effortless 3-minute installation process will save you much installations time

    3. Meanwell HBG series driver and Nichia 3030 LED make the LED high bay light fixtures durable without quality headache. With an expected lifespan of 50,000 hours, the LED light will reduce costs for maintenance

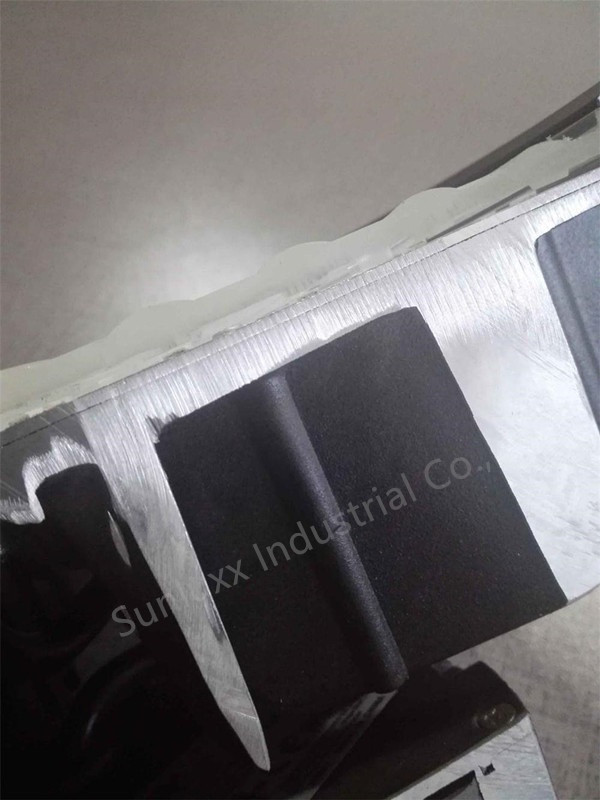

    4. Die casting aluminum can make good heat dissipation to ensure a long life for the LEDs and driver.

    5. Up to 20'(6m) mounting height


    Produce Code

    HBL-60Watt HBL-80W 100W HBL-120W150W HBL-200W240W

    Power60Watt80W 100W120W 150W200W 240W
    Input Voltage90-305VAC
    Input Current

    60W:0.27A@220VAC 80W: 0.36A@220VAC 100W:0.45A@220VAC

    120W:0.55A@220VAC 150W:0.68A@220VAC 200W:0.91A@220VAC

    240W:1.10A@220VAC

    PF>0.90@220VAC
    DC output voltage60W:54V 80W100W120W150W: 48V
    DC output current60W:1.05A 80W: 1.5A 100W: 1.9A 120W: 2.3A 150W:2.9A 200W:3.9A 240W:4.65A
    Dimming (Optinal)3 in 1 dimming (PWM, 0-10V, Resistor),Dali
    CCT4000K,5000K,5700K,3000K

    Ra >70

    5000K

    Typical Flux

    60W:9000Lm±5%,80W:12000Lm±5%,100W:15000Lm±5%,

    120W:18000Lm±5%,150W:22500Lm±5%,200W:30000Lm±5%

    240W:36000Lm±5%

    LED BrandNichia 3030 and Lumileds 3030
    Beam Angle60°,90°,120°
    Operation Temp-40℃ ~ +45℃
    Storage Temp-40℃ ~ +85℃
    Life Circle45℃ 50000Hours
    IP ClassIP66
    IK ClassIK08
    CertificateCE,ROHS
    Body ColorBlack (default with RAL9005),Gray ( optional for RAL9007)

    80Watt UFO LED High Bay Lights Light Distribution



    Exploded View of Sunluxx LED High Bays

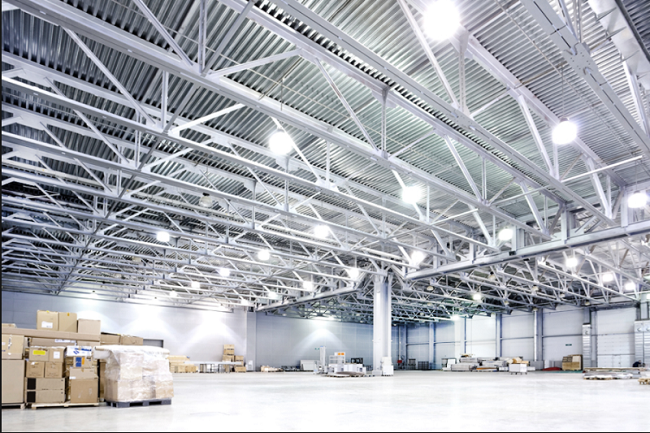

    Applications
