    150LM/W 100W LED High Bay Down Light Hook Mount Type With 90°Beam Angle Lens

    Ask Lasest Price
    Brand Name : SUNLUXX
    Model Number : CHBL-100
    Certification : ETL, CE,SAA,ROHS,NSF
    Price : US$98.66/PCS unit for EXW item
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000 Pieces per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    150LM/W 100W LED High Bay Down Light Hook Mount Type With 90°Beam Angle Lens

    Food Processing Lighting 150Lm/W 100W LED High Bay Down Light , Hook Mount , 90°Beam Angle Lens


    LED High Bay Down Light LED High Bay fixture has an ambient temperature rating of -40°C to -45°C, and comes in a 5000K color temperature. Its ratings include: ETL, DLC, NSF, ROHS.


    Features of LED High Bay Down Light


    1. Compact and Fashion design

    2. Luminous efficacy 150 lm/W,high power factor,MOSO brand Driver
    3. Uniform light distribution

    4. The first patented proprietary optics and higher transmittance 95% water wave lens

    5. Surface anti-aging electrostatic spray-paint processing, ensure longer lifespan

    6. 60/90/120 degree IES distribution selection, national listing lab tested with IES standard.


    ItemCHBL-100CHBL-120CHBL-150
    Power100W120W150W
    Input Voltage90-305VAC90-305VAC90-305VAC
    Input Current0.47A@220VAC0.57A@220VAC0.68A@220VAC
    PF>0.90@220VAC>0.90@220VAC>0.90@220VAC

    Dimming Option

    MOSO

    2 in 1 dimming (PWM, 0-10V)2 in 1 dimming (PWM, 0-10V)2 in 1 dimming (PWM, 0-10V)

    Dimming Option

    Meanwell

    3 in 1 dimming (PWM, 1-10V, Resistor) / Dali3 in 1 dimming (PWM, 1-10V, Resistor) / Dali3 in 1 dimming (PWM, 1-10V, Resistor) / Dali

    Ra>80

    Luminous Flux

    14000Lm16800Lm21000Lm

    Ra>70

    Luminous Flux

    16000Lm19200Lm24000Lm
    LED BrandCree SMD 3030 / LUMILEDS 3030Cree SMD 3030 / LUMILEDS 3030Cree SMD 3030 / LUMILEDS 3030
    Beam Angle60°90°120°60°90°120°60°90°120°
    Operation Temp-40℃ ~ +45℃-40℃ ~ +45℃-40℃ ~ +45℃
    Storage Temp-40℃ ~ +85℃-40℃ ~ +85℃-40℃ ~ +85℃
    Lifespan25℃ 50000Hours25℃ 50000Hours25℃ 50000Hours
    IP ratingIP69KIP69KIP69K
    IK ratingIK10IK10IK10
    CertificatesETL, CE,SAA,ROHS,NSFETL, CE,SAA,ROHS,NSFETL,CE,SAA,ROHS,NSF
    Lamp Body ColorOrange( RAL2004)Orange( RAL2004)Orange( RAL2004)
    Product Size(mm)400*400*197400*400*197400*400*197
    Net Weight(kg)5.6kg5.6kg5.6kg
    Packing Size(mm)480*480*220480*480*220480*480*220
    Gross Weight(kg)6.8kg6.8kg6.8kg
    Installation WayHook Mount/Pendant MountHook Mount/Pendant MountHook Mount/Pendant Mount

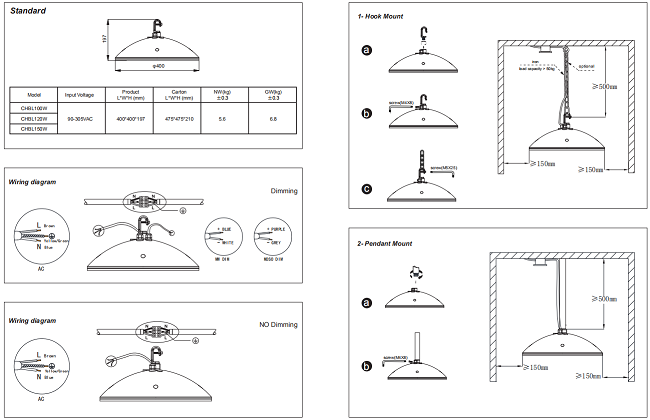

    Installation Way:Hook Mount and Pendant Mount



    Applications
