IK10 IP66 Ferrari LED Area Flood Lights Smart Dimming Function Available

    Buy cheap IK10 IP66 Ferrari LED Area Flood Lights Smart Dimming Function Available from wholesalers

    Buy cheap IK10 IP66 Ferrari LED Area Flood Lights Smart Dimming Function Available from wholesalers
    • Buy cheap IK10 IP66 Ferrari LED Area Flood Lights Smart Dimming Function Available from wholesalers
    • Buy cheap IK10 IP66 Ferrari LED Area Flood Lights Smart Dimming Function Available from wholesalers
    • Buy cheap IK10 IP66 Ferrari LED Area Flood Lights Smart Dimming Function Available from wholesalers
    • Buy cheap IK10 IP66 Ferrari LED Area Flood Lights Smart Dimming Function Available from wholesalers
    • Buy cheap IK10 IP66 Ferrari LED Area Flood Lights Smart Dimming Function Available from wholesalers
    • Buy cheap IK10 IP66 Ferrari LED Area Flood Lights Smart Dimming Function Available from wholesalers

    IK10 IP66 Ferrari LED Area Flood Lights Smart Dimming Function Available

    Ask Lasest Price
    Brand Name : SUNLUXX
    Model Number : FAL-240W
    Certification : CE RoHs
    Price : US$217/PC, EXW Price
    Payment Terms : T/T, Western Union
    Supply Ability : 6000 PCS per Month
    Delivery Time : 3 - 5 working days
    • Product Details
    • Company Profile

    IK10 IP66 Ferrari LED Area Flood Lights Smart Dimming Function Available

    IK10 , IP66 , 33600LM 240W Ferrari LED Area Flood Light For Public Area Lighting


    Features


    • Integrated heat sink design, die-casting aluminum lamp body, excellent heat dissipation.

    • NICHIA 3030 SMD LED chips, 140lm/W, Ra>80. Ra>70 standard.

    • MEANWELL driver, long life and 5 years warranty.

    • Smart dimming function available.

    • High quality PC lens, high lighting efficiency.

    • Flexible bracket, satisfy different mounting angle needs.

    • IP65, IK10.


    Technich Data


    Power240W
    Input Voltage90 - 305VAC
    Input Current1.10A@220VAC
    PF>0.9@220VAC
    DC Output Voltage48V
    DC Output Current4.65A
    Dimming (Optional)3 in one dimming(PMW, 1-10V,Resistor), DALI
    CCT4000k, 5000k, 5700K, 3000K and 2700K can be customized
    Ra>80,5000KTypical Flux31200lm±10%
    Efficiency130lm/W±10%
    Ra>70,5000KTypical Flux33600lm±10%
    Efficiency140lm/W±10%
    LED BrandNICHIA 3030
    Light TypeAsymmetric and symmetric polarized light
    Operation Temp.-40 to + 45 ℃
    Storage Temp.-40 ℃ to + 85 ℃
    Lifespan45℃ , 50,000 hours
    IP Class66
    IK Class10
    Lamp Body ColorGrey or as customized
    Product Size(mm)441*373*50
    Net Weight(kg)6.37
    Packing size(mm)540*460*190
    Gross Weight(kg)13.5
    Product Quantity Per Carton2pcs
    Installation MethodBracket Mount

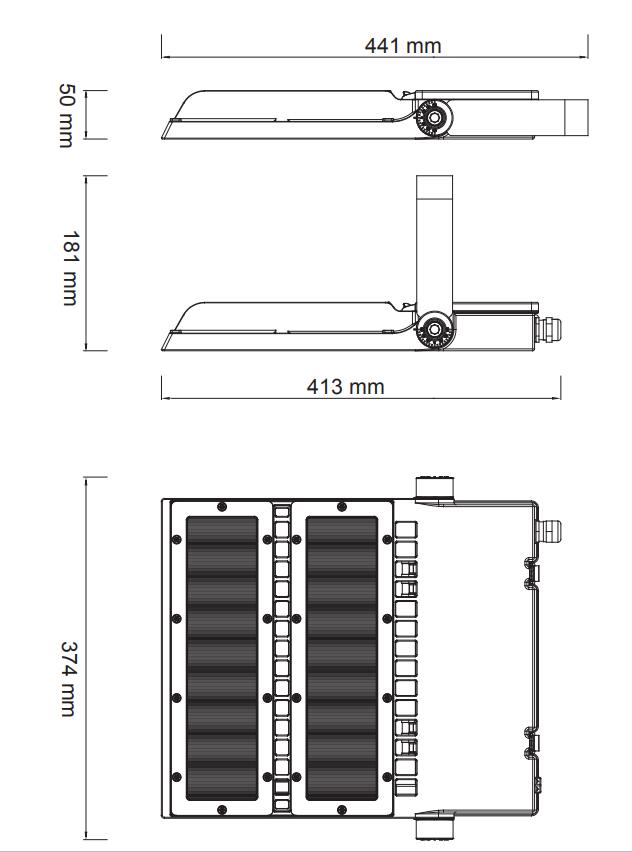

    Product Size



    Beam Angle


    ANB AWB SNB SWB


    Installation Manual

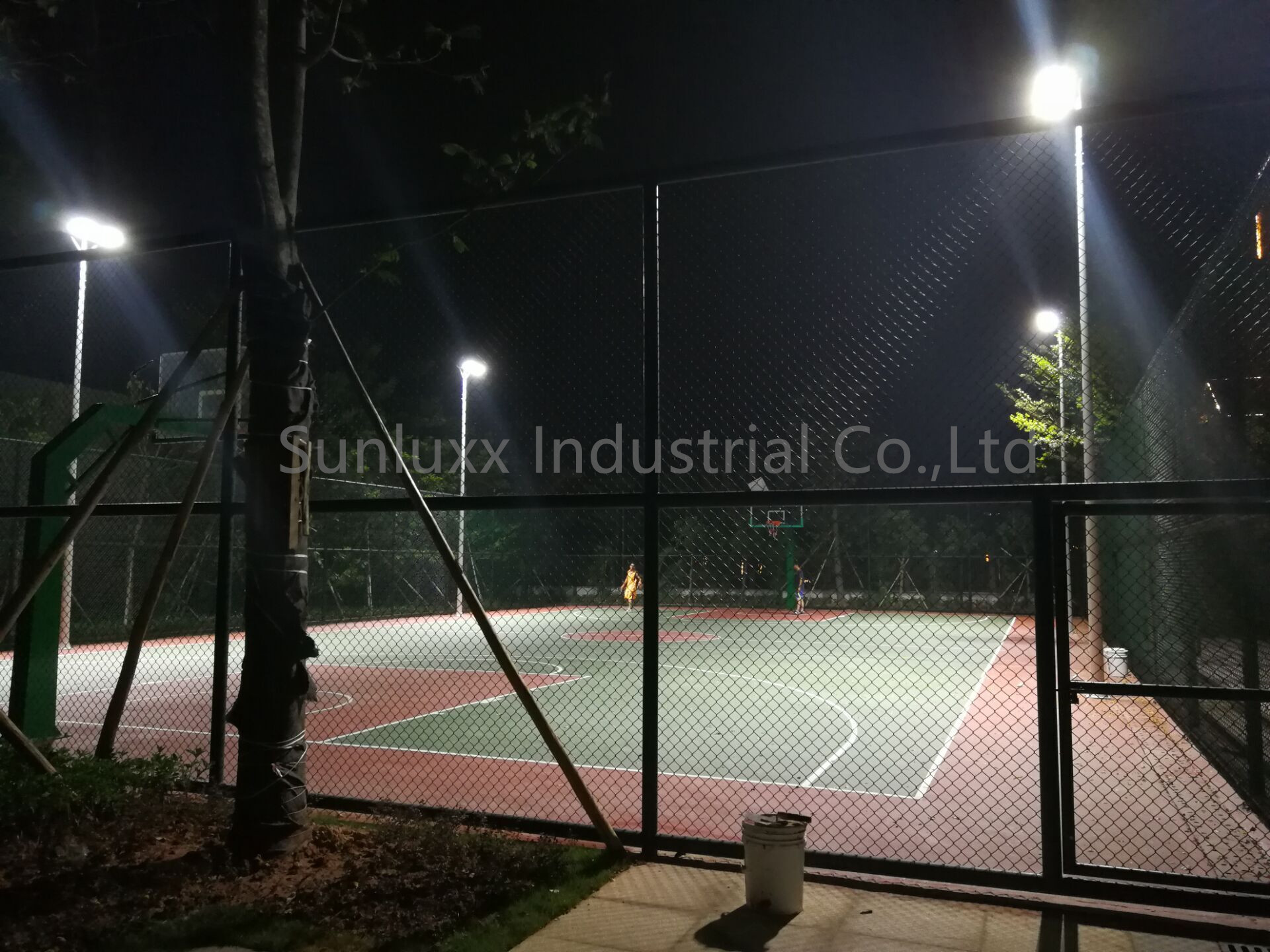

    Applications


    Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Sport Court Lighting.
