100-277V LED High Bay Warehouse Lighting Fixture CRI 80 NSF Food Grade Various Beam Angle

    Buy cheap 100-277V LED High Bay Warehouse Lighting Fixture CRI 80 NSF Food Grade Various Beam Angle from wholesalers

    Buy cheap 100-277V LED High Bay Warehouse Lighting Fixture CRI 80 NSF Food Grade Various Beam Angle from wholesalers
    • Buy cheap 100-277V LED High Bay Warehouse Lighting Fixture CRI 80 NSF Food Grade Various Beam Angle from wholesalers
    • Buy cheap 100-277V LED High Bay Warehouse Lighting Fixture CRI 80 NSF Food Grade Various Beam Angle from wholesalers

    100-277V LED High Bay Warehouse Lighting Fixture CRI 80 NSF Food Grade Various Beam Angle

    Ask Lasest Price
    Brand Name : SUNLUXX
    Model Number : CHBL-120
    Certification : ETL, CE,SAA,ROHS,NSF
    Price : US$100.82/PCS unit for EXW item
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000 Pieces per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

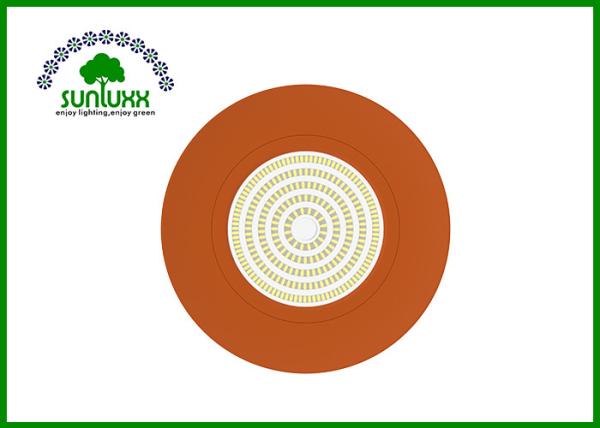

    100-277V LED High Bay Warehouse Lighting Fixture CRI 80 NSF Food Grade Various Beam Angle

    100-277V,CRI 80,UFO Food Grade LED High Bay Light With MOSO Driver Various Beam Angle for Option


    NSF UFO Food Grade LED High Bay Light Features


    • NSF/CE/Rosh/Certification, safety and modern design.
    • Food grade UFO light -NSF Certification
    • The color of the lamp housing is using orange RAL2004
    • We have Meanwell and MOSO brands drivers for optional both
    • Good Heat dissipation.
    • 45°/90°/120° three different beam angle for you to choose.
    • 70/80 CRI optional Ip65 & IP69(K),can be washed directly.
    • This products using 304 stainless steel hook & Safe rope
    • For this type of LED, we provide 5 years warranty
    • The lens has been applied for patent and patent fillings by Chinese custom.The record number is P2018-72651
    • This Food High bay light Luminous efficacy can reach 150LM/W



    NSF Food High Bay Light Parameters


    Item NumberCHBL-120
    Power120W
    Input Voltage90-305VAC
    Input Current0.57A@220VAC
    PF>0.90@220VAC
    Dimming Option MOSO2 in 1 dimming (PWM, 0-10V)
    Dimming Option

    Meanwell

    3 in 1 dimming (PWM, 0-10V, Resistor) / Dali
    Ra>80

    Luminous Flux

    16800Lm
    Ra>70

    Luminous Flux

    19200Lm
    LED BrandCree SMD 3030 / LUMILEDS 3030
    Beam Angle60°90°120°
    Operation Temp-40℃ ~ +45℃
    Storage Temp-40℃ ~ +85℃
    Lifespan25℃ 50000Hours
    IP ratingIP69K
    IK ratingIK10
    CertificatesETL, CE,SAA,ROHS,NSF
    Lamp Body ColorOrange( RAL2004)
    Product Size(mm)480*480*220
    Gross Weight(kg)6.8kg
    Installation WayHook Mount/Pendant Mount
    HousingDie-Casting Aluminum


    Photometrics




    Product Dimension




    NSF Food High Bay Light Installation



    NSF Food High Bay Light has two installation way for you to choose, The first one is hook, the second one is Pendant.
    This choice depend on customer's need. We will confirmed this information with you before order.


    Application

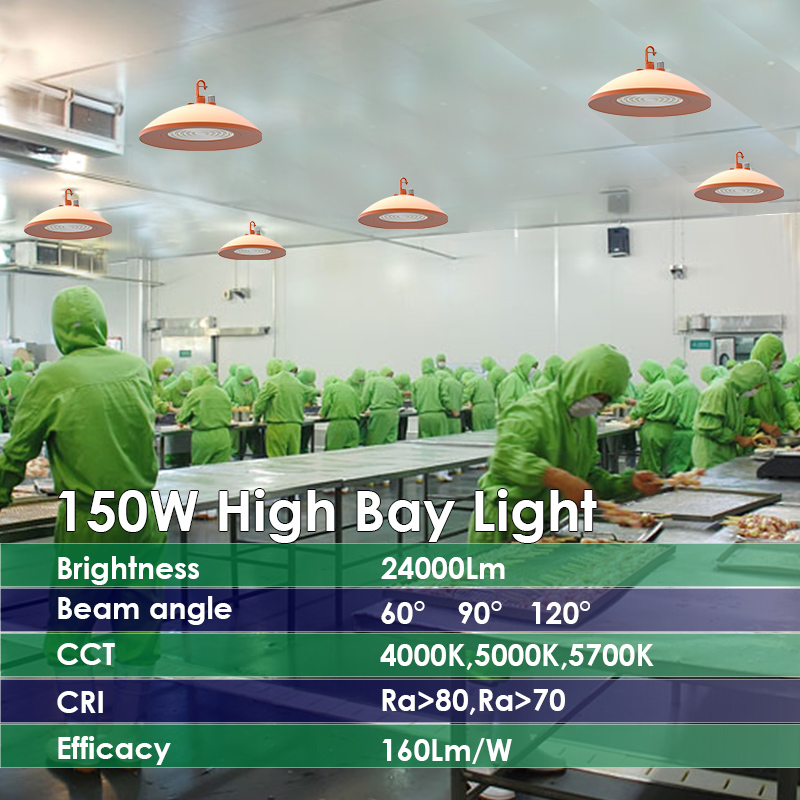

    NSF LED food High bay Light is mainly be used in clean food/ food manufacturer plant and other places as below:

    • Meat processing plant
    • Pharmaceutical factory
    • Milk processing factory
    • Workshop
    • Fruit plant
    • Cold storage



    Sunluxx Service



    1. If we have the honor to serve you , we will provide 7X24hours service.
    2. We will make full range of record for the lamps you ordered in our company , and make sure that you could order the exactly same products continuously .
    3.Quality is our life. Every of your order will be taken very seriously, no matter big or small.
    4. Your request is the direction of our efforts. If you have any new ideas or designs, our engineer will make it real.
    5. Once the lead time is agreed, we never delay .


    After-sales Service



    1. The products of Sunluxx's warranty time is 5 years and effected from the date of original purchase.
    2. Kindly be attention that warranty is only available for customers who purchase directly from Sunluxx, during the warranty time:
    (1) If confirmed driver is failed, we will send you the new driver.
    (2) If confirmed that is LED board broken, we will send you New LED board.
    (3) The other new replacement will be sent with the new order depend on the level of damage or the specific causes of defectives.


    Shipping& Payment terms






    Product Detail
